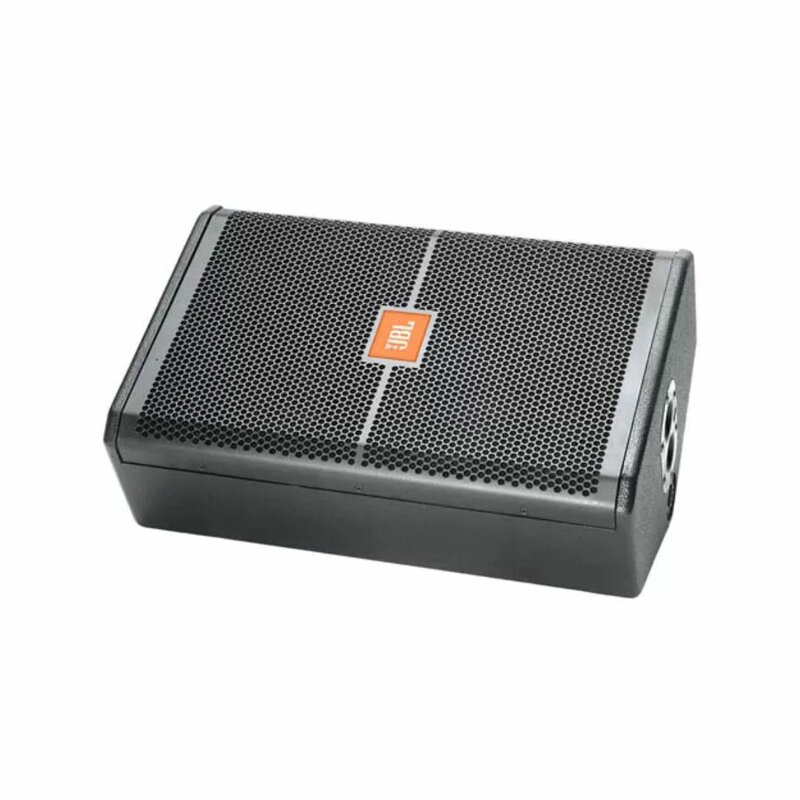

JBL SRX712M 12" Two-Way Stage Monitor

Product Description

JBL SRX712M Professional Loudspeakers price in Kenya, Features and specifications;

JBL SRX712M Professional Loudspeakers price in Kenya is Ksh 21,995/=. Order it from Kenyatronics today and enjoy a record 2 hour Home & office delivery for Nairobi, Next-day countrywide.

The SRX712M was designed with one goal - build the lightest, smallest, loudest, clearest stage monitor possible while delivering strikingly professional appearance.

JBL SRX712M Professional Loudspeakers KEY FEATURES:

Compact and low-profile for minimal obstruction of audience sight-lines.

90°x 50° nominal coverage.

Bi-amplified or full-range passive operation.

Dual-angle pole socket for applications requiring tripod mounting.

Optional yoke available for trussmounted or suspended applications.

Neodymium magnet Differential Drive® woofer for high-power capacity and very light-weight.

3 in (diaphragm) neodymium magnet compression driver.

Applications

Live performance stage monitoring

Speech reinforcement

Reinforcement of vocal and acoustic music

High-performance satellite speaker for use with subwoofers

JBL SRX712M Professional Loudspeaker Description

The SRX712M uses a 12″” Differential Drive? woofer and a 3″” (voice coil diameter) compression driver that handles 800 watts (continuous) power in a 12″ high profile. A 90° x 50° horn provides smooth, even coverage regardless of the position of the performer.
For utility speaker applications, the SRX712M can be tripod mounted or over a subwoofer with JBL’s dual angle pole mount providing 90° vertical or 10° down tilt for optimum audience coverage.

Low profile and loud
The SRX712M was designed with one goal - build the lightest, smallest, loudest, clearest stage monitor possible while delivering a strikingly professional appearance. With a profile that is only 12 inches above the stage, the SRX712M uses a 12" Differential Drive woofer and a 3" voice-coil, neodymium compression driver that handles 800 watts of continuous power. A 90° x 50° horn provides smooth, even coverage whether the performer is standing right on the speaker or moving upstage.

Bi-amp or passive
Bi-amp or full-range passive operation may be selected by a recessed, high-current switch mounted in the handle cup. NL4 connectors are provided on both ends of the speaker to keep cable runs tidy on stage.

Double duty as a utility speaker
The SRX712M can also do double duty as a utility speaker. For use on a
tripod or over a subwoofer, JBL's dual angle pole mount is included. This feature allows the speaker to be mounted in a vertical position or with a 10° down tilt for optimum audience coverage. If suspension or truss mounting is a requirement, add the optional SRX712M-YK yoke bracket. This accessory provides attachment points for a wide range of suspension and truss mounting hardware.

Rugged and road-ready
The enclosure is constructed of top quality birch plywood and coated in JBL's rugged DuraFlex finish. The attractive CNC-machined, 16-gauge steel grille wraps around the sides of the enclosure so there are no protruding lips on the front of the box to create acoustical interference. The grilles are internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance.

Specifications:

System Type: 12", two-way, bass-reflex, stage-monitor / utility

Frequency Range (-10 dB): 70 Hz – 20 kHz

Frequency Response (±3 dB): 83 Hz – 18 kHz

Coverage Pattern: 50° x 90° nominal (Monitor position)

Crossover Modes: Bi-amp / passive, externally switchable

Crossover Frequency: 1.2 kHz

Power Rating Passive: 800 W / 1600 W / 3200 W

(Continuous1 / Program / Peak): Bi-amp LF: 800 W / 1600 W / 3200 W

Bi-amp HF: 75 W / 150 W / 300 W

Maximum SPL2: 131 dB SPL peak

System Sensitivity (1w @ 1m): 96 dB SPL (passive mode)

LF Driver: 1 x JBL 2262H 305 mm (12 in) Differential Drive

woofer

HF Driver: 1 x JBL 2431H 75 mm (3 in) voice coil, neodymium

compression driver

Nominal Impedance: Passive: 8 ohms

Bi-amp LF: 8 ohms

Bi-amp HF: 8 ohms

Active Tunings: dbx DriveRack, all models. Settings available at

www.jblpro.com

Enclosure: Symmetrical stage monitor, 15 mm, 11-ply birch

plywood.

Suspension / Mounting: Dual-angle (0° or -10°), 35 mm pole socket

2 x M10 fittings for optional SRX712M-YK yoke

Transport: Integrated handle / input cup

Finish: Black DuraFlex finish

Grille: Powder coated, black, 16-gauge perforated steel with

acoustical transparent charcoal foam backing.

Removable JBL badge and punched JBL logo.

Input Connectors: Neutrik® Speakon® NL-4 (x2), one on each end

Dimensions (H x W x D): 349 mm x 546 mm x 260 mm

(13.75 in x 21.5 in x 10.25 in)

Net Weight: 15 kg (33 lb)

Optional Accessories: SRX712M-CVR: Pull-over padded cover

SRX712M-YK: Suspension / mounting yoke
