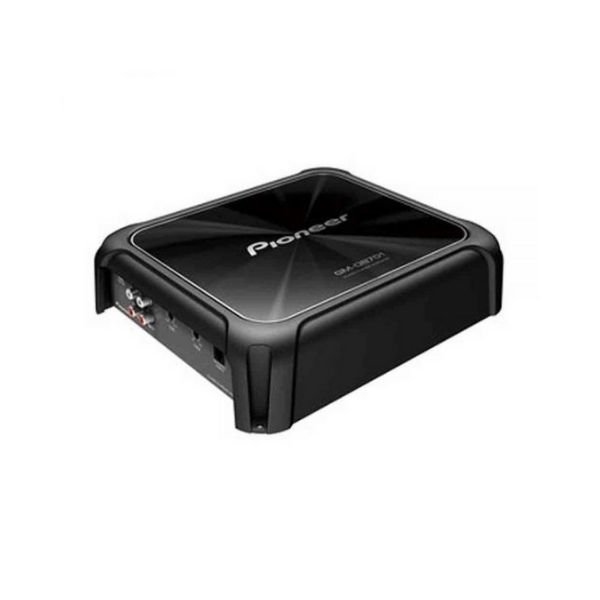

Pioneer GM-D8704 4 Channel 1200w Max Power - Bridgeable Amplifier

Pioneer GM-D8704 4 Channel 1200w Max Power - Bridgeable Amplifier

Pioneer GM-D8704 4 Channel 1200w Max Power - Bridgeable Amplifier price in kenya is ksh 23995/= .Get it at kenyatronics  in 2 hrs for Nairobi , Next-day countrywide.

Pioneer GM-D8704 4 Channel 1200w Max Power features

High Quality Textured Flat Panel and Tough Frame

Bass Boost Remote included

1,200 Watts Max Power

Pioneer GM-D8704 4 Channel 1200w Max Power - Bridgeable Amplifier description

Pioneer GM-D8704 4 Channel 1200w Max Power - Bridgeable Amplifier shouldn’t take up too much space, especially in your car. This Class-D amps might just be what you’re looking for. It combines a 1-Ohm stable circuit, installation flexibility and a superior high-power output.

BIG POWER, SMALL SIZE

Pioneer’s new extra-efficient Class-D digital 4 Channel Bridgeable Amplifier mark a dramatic improvement in power output capability, yet are 50% smaller than the current GM-Series Class-AB amplifiers. That makes them more versatile in terms of

 as well as performance.

IMPROVED CIRCUIT DESIGN

To prevent circuit shutdown, Pioneer’s new digital amplifier circuit “Protection Control System” senses its internal temperature and automatically moderates input level accordingly. Stable, durable circuitry lessens the risk of high input power for the unit to achieve 1 Ω connection. This design enhances the flexibility to

 to a system.

VARIABLE LOW PASS & HIGH PASS FILTER

For extra flexibility, variable LPF and HPF make audio frequency more adjustable according to

 characteristics and personal listening preferences. The LPF and HPF are adjustable from 40 Hz to 500 Hz.

SPEAKER LEVEL INPUTS

What, you DON’T own a Pioneer head unit? Well, we won’t hold it against you. In fact we’ll even help you build onto your system. Speaker level inputs allow you to connect your OEM unit (or any unit that doesn’t have the typical RCA-type inputs) without having to buy add-on adapters. So, the install goes faster, you save money, and you’ve got a Pioneer amp in your vehicle.

Pioneer GM-D8704 4 Channel 1200w Max Power - Bridgeable Amplifier Specifications:

RMS Power Rating:

4 ohms: 100 watts x 4 chan.

2 ohms: 150 watts x 4 chan.

1 ohm: 125 watts x 4 chan.

Bridged, 4 ohms: 300 watts x 2 chan.

Max power output: 600 watts x 2 chan.

Pulse Width Modulated MOSFET power supply

LED power (green) and protect (red) indicators

4/3/2 channel operation

Preamp RCA outputs to daisy chain multiple amps

3-way protection circuitry (thermal, overload, and speaker short protection)

High-density split-dome convection heat-sink for extreme heat dissipation

Nickel-plated RCA level inputs

Nickel-plated screw terminals

Input sensitivity:

Low level: 200mV-6.5V

High level: 0.8V-16V

Variable high-pass filter (40-500 Hz, 12 dB/octave)

Variable low-pass filter (40-500 Hz, 12 dB/octave)

CEA-2006 compliant amplifier

Frequency response: 40-50,000 Hz

4 gauge power and ground wiring is required for installation. Contact us for information regarding a discount on select amplifier kits from our website when purchased together with this amplifier.

What’s in the Box of Pioneer GM-D8704

4-Channel Amplifier

Two 30-amp ATO fuses (installed)

Bass Boost Remote Control

Bass Boost Remote Control Cable

2 Speaker Level to RCA Input Adapters

Installation Screws X 4

Wire Terminal Tool

Owner's manual (English/ French)

1 Year Warranty Sheet

Pioneer GM-D8704 4 channel bridgeable amplifier is best priced in Kenya at Kenyatronics. Get it within 2 Hours in Nairobi, and 24 Hours for countrywide delivery.
