Product Description

Key Features

4-channel car amplifier
70 watts RMS x 4 at 4 ohms
160 watts RMS x 2 at 4 ohms in bridged mode
frequency response: 10-100,000 Hz
separate variable high- and low-pass filters for front and rear channels

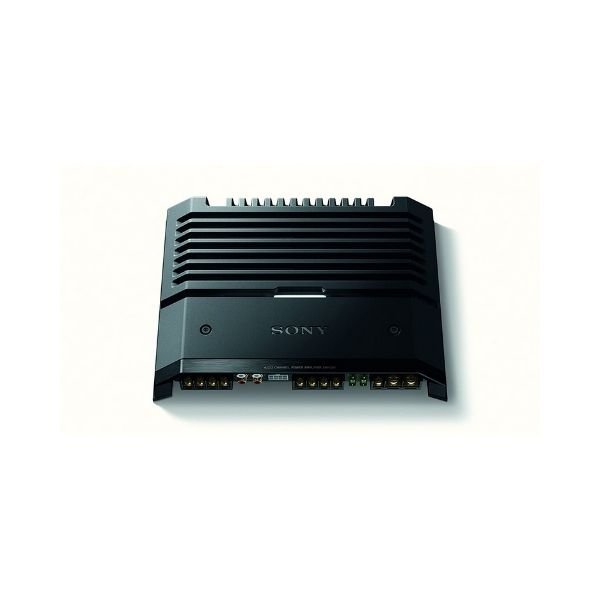

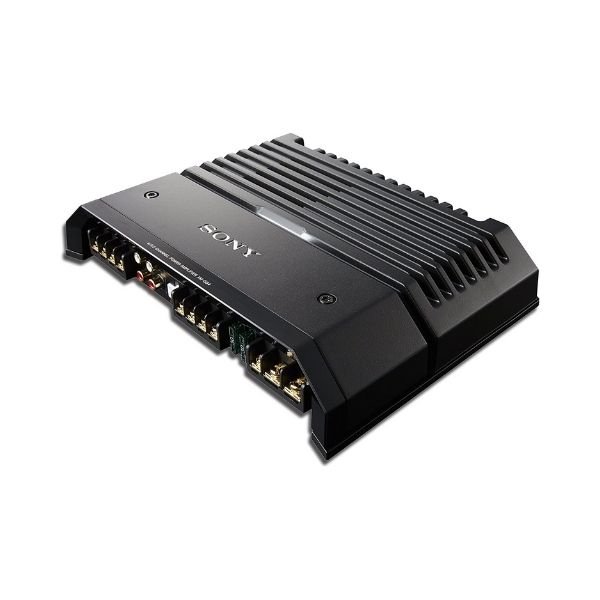

Sony XM-GS4 4-channel amplifier will drive your whole system, sending 70 watts RMS to each of your front and rear speakers. Or you can switch the amp into 2-channel mode to power a couple of subs with 160 watts RMS each. This compact amp sports a hefty heat sink that gets rid of the heat that’s generated when you’re pushing your system hard. The Sony’s XM-GS4 4-channel amplifier also uses a cooling fan, which automatically adjusts its speed for the heat it detects, ensuring this small amplifier will always produce the power that’s expected.

Product highlights:

4-Channel Hi-Resolution Audio Compatible 4-Channel Car Amplifier
Max Power Rating:

4 ohms: 150 watts x 4 chan.
2 ohms: 175 watts x 4 chan.
Bridged, 4 ohms: 350 watts x 2 chan.

Total power output: 700 watts MAX
CEA-2006 Compliant Amplifier
Ultra-wide frequency range that extends up to 100 kHz
Engineered for minimal noise and maximum efficiency
High-quality electrolytic capacitors assist in powering bright, versatile sound
High-current transistor ensures fast, efficient power transfer for responsive operation
Low flux choke coils in the power block deliver low-noise, high-quality sound reproduction

Twisted-wire cable structure provides additional noise resistance from electromagnetic interference

Premium Schottky-barrier diodes provide faster switching and superior system efficiency for smoother, more stable audio
Potentiometers are highly reliable, for consistently minimal noise
Pulse Width Modulated MOSFET power supply

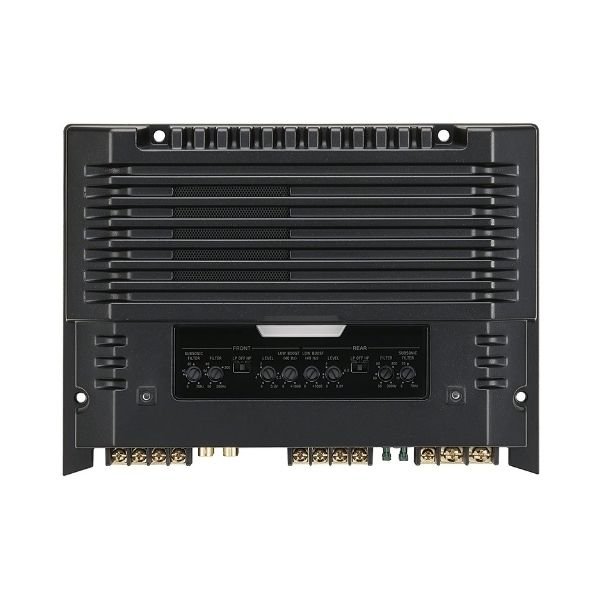

Removable top panel conceals complete crossover & level controls
Compact aluminum alloy chassis
LED power (blue) and protect (red) indicators
Soft start turn-on
4, 3 or 2 channel stereo operation

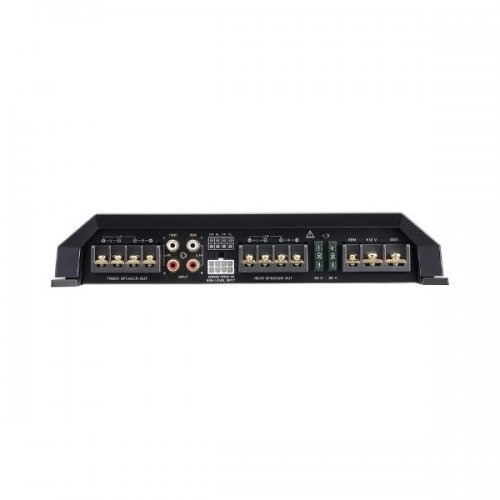

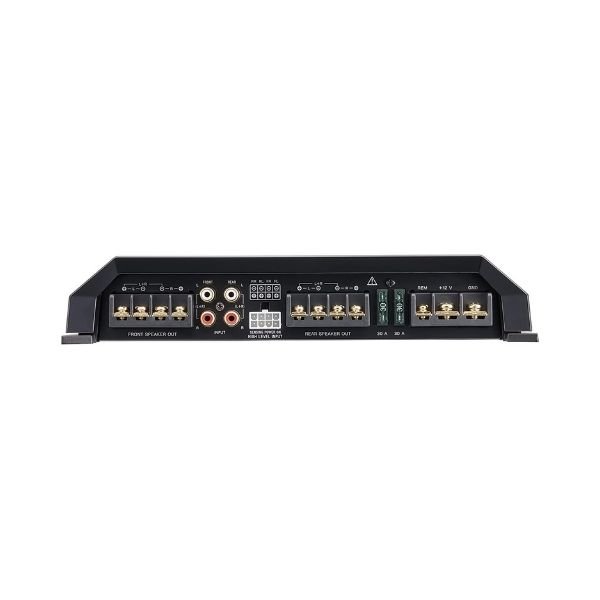

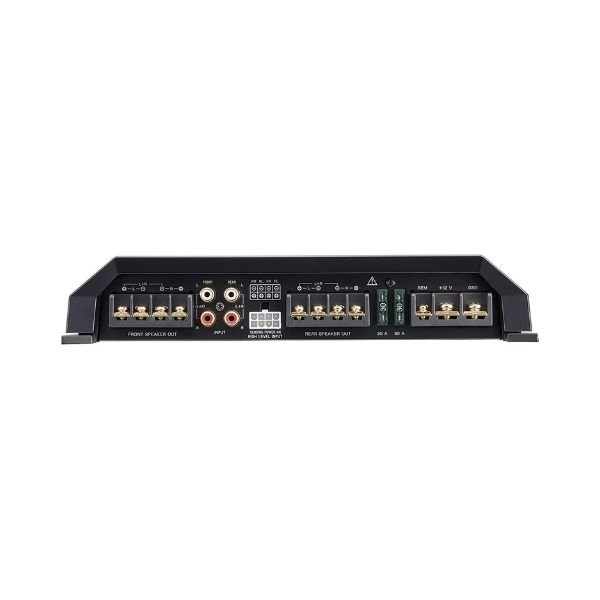

Speaker-level (high-level) inputs with Auto Turn-on for OEM Integration
Gold-plated RCA level inputs
Gold-plated screw terminals
3-way protection circuitry (thermal, overload, and speaker short protection)
Heavy duty aluminum alloy heat-sink for extreme heat dissipation
Input sensitivity:

Low level: 300mV – 6V
High level: 1.2V – 12V
